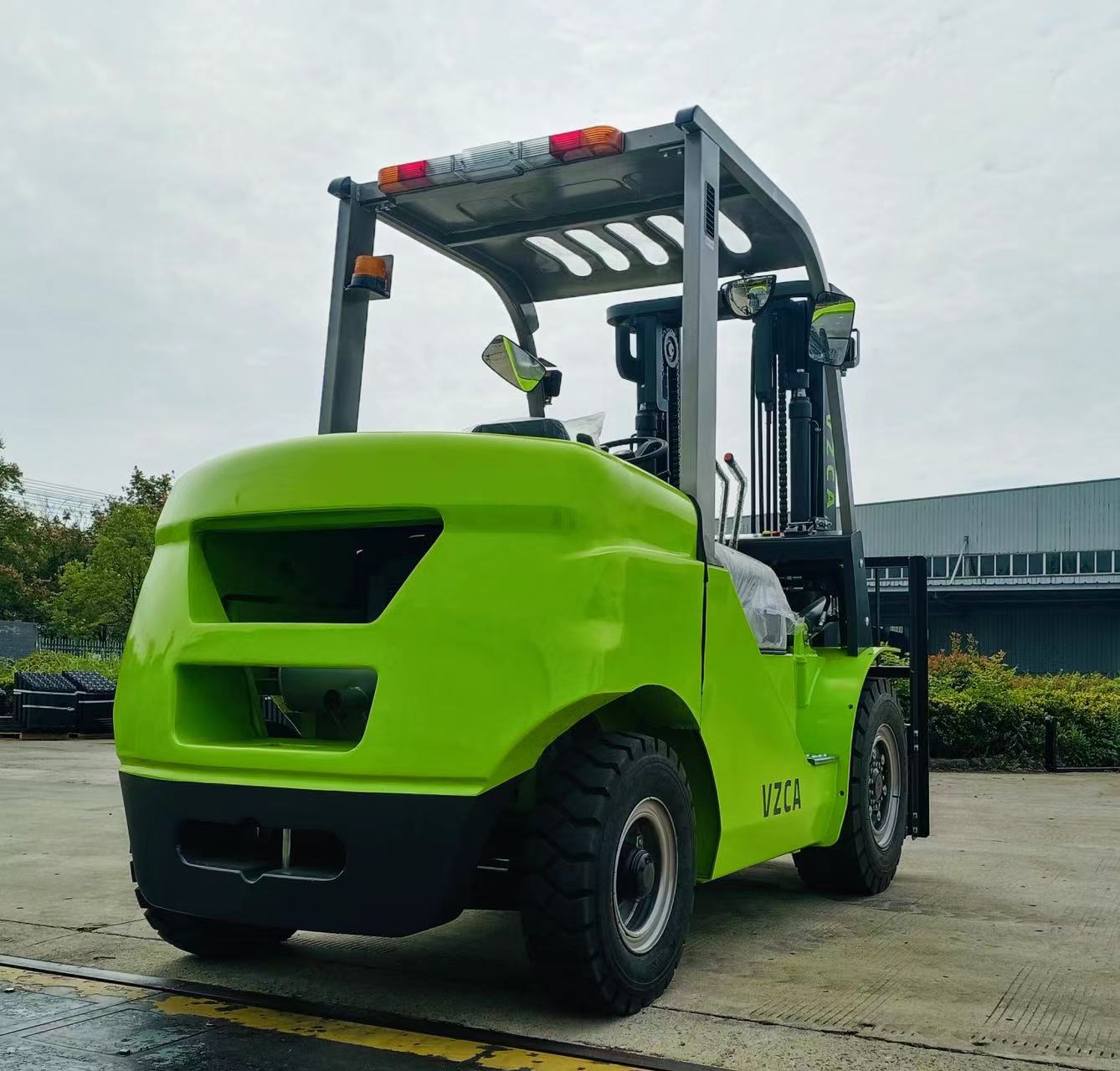

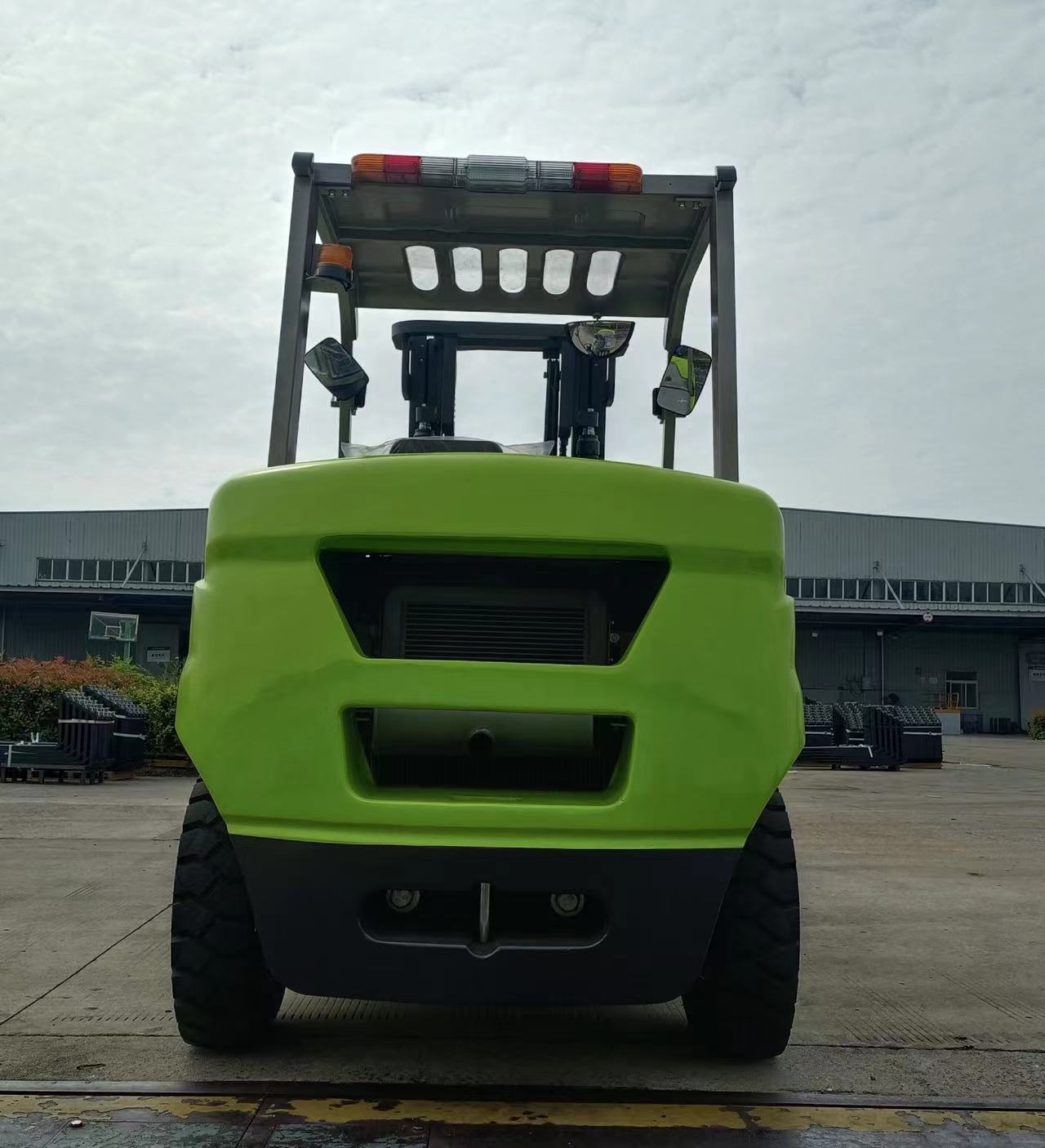

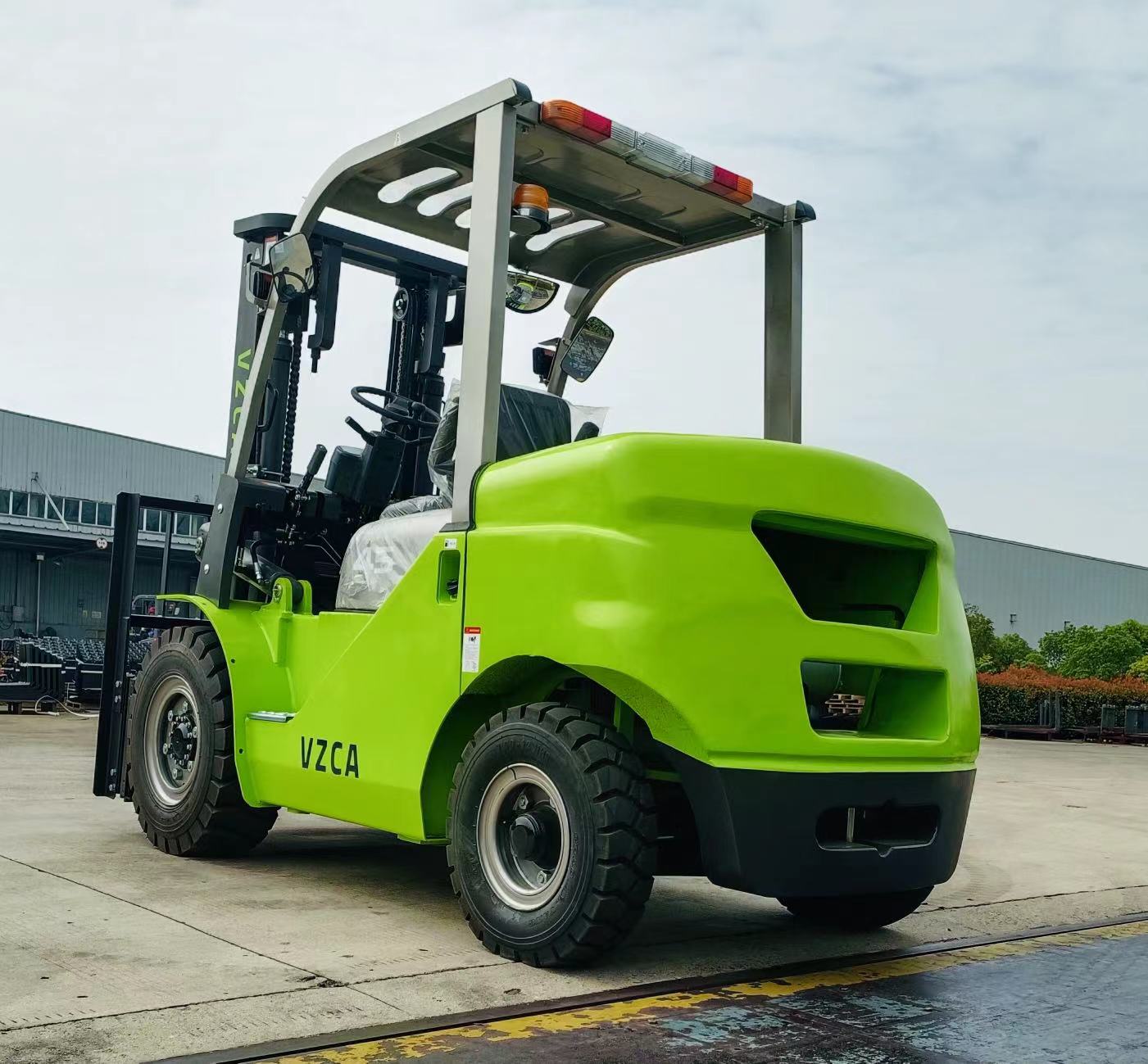

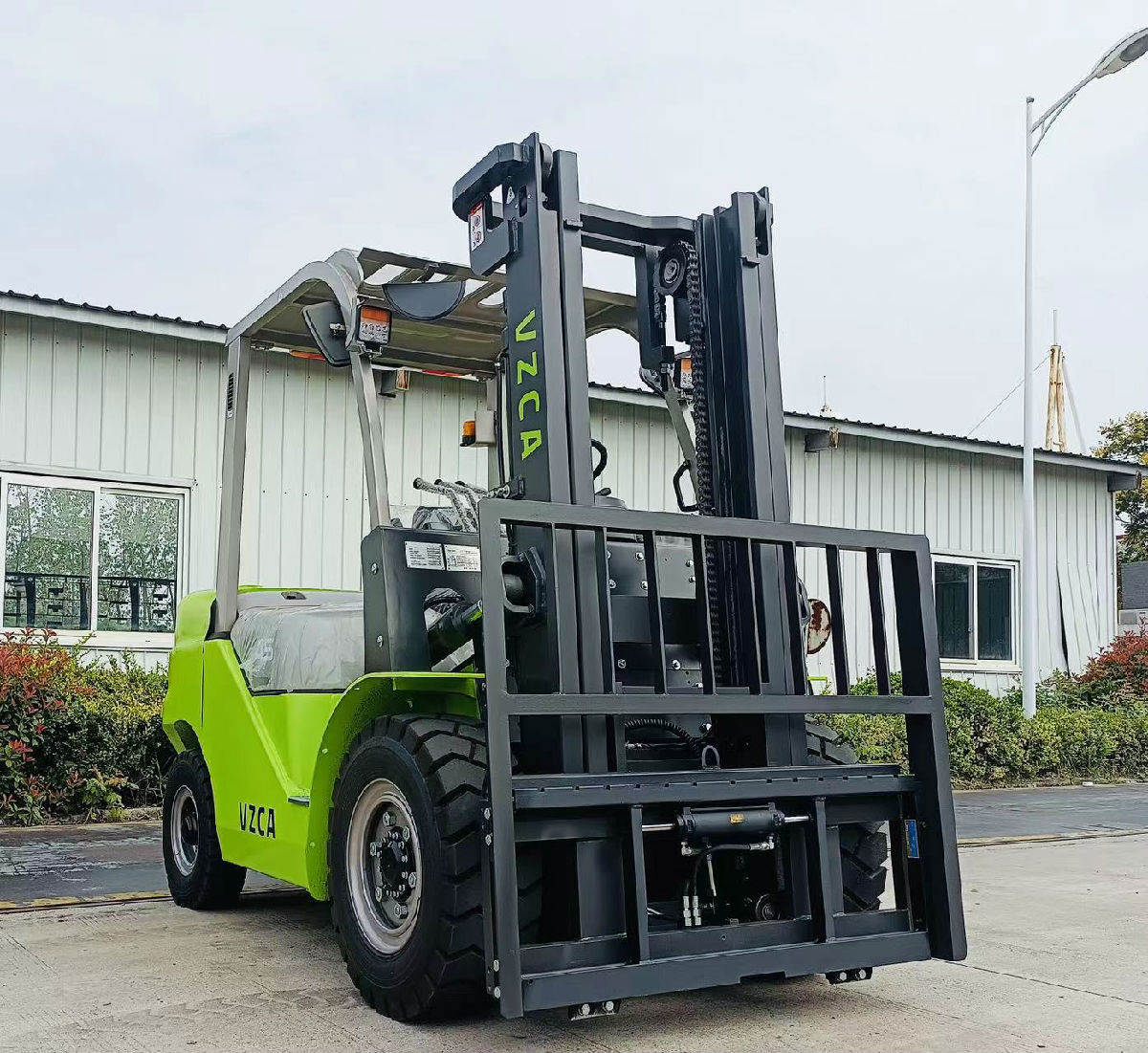

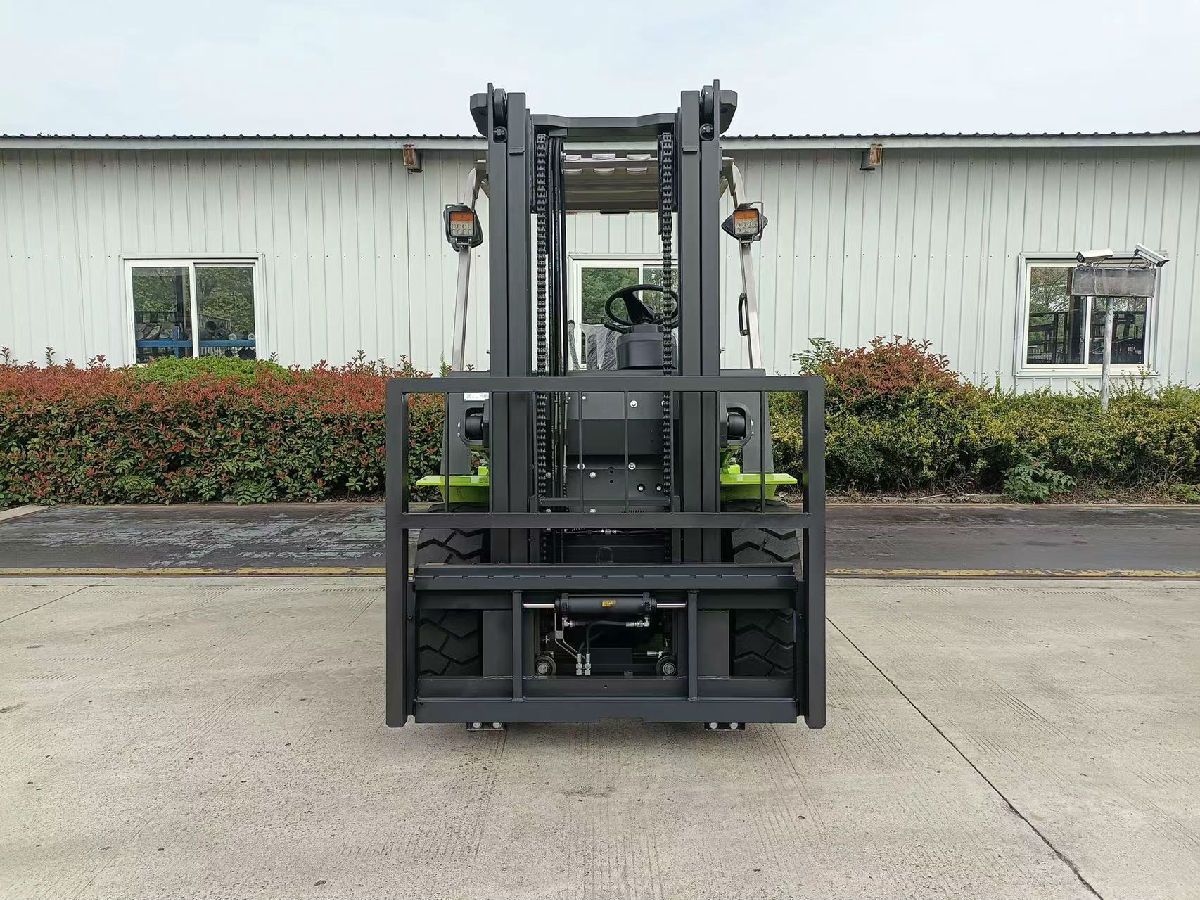

HARDWARE

Power type:Diesel

Rated Load:3000kg

Load Center:500mm

Auto hydraulic transmission power shift

Lifting Height:3000mm

Engine:China Xinchai C490 engine

Side shift

Pneumatic tire

Free Lifting Height :145mm

Fork SizeL*W*T:1070×125×45mm

Mast Tilt Radius:Front/Rear:6/12

Minimum Turning Radius:2600mm

Minimum Ground Clearance:120mm

Overhead Guard Height:2170mm

Front Overhang:545mm

Max. Traveling Speed (Full load):20km/h

Max. Lifting Speed (Full load):470/520mm/s

Max. Traction(Full load):18KN

Max. Climbing Ability:20%

Overall Length(Without Fork):2825mm

Overall Width:1230mm

Mast lowered height:2065mm

TyreFront:28x9.00-15-12PR

Rear:6.50-10-10PR

Wheel Base:1800mm

Wheel Tread(Front/Rear):1000/970mm

Curb Weight(Without Load):4325Kg

Battery(Voltage/Capacity):12/90V/Ah

Fuel Tank Volume:70L

Working Pressure:17.5 Mpa
