HARDWARE

Product Description：

(1)    The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.

(2)    It's kind of high-efficient machine with easy operation, high degree of automation.

(3)    Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading

(4)    Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire

(5)    As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.

(6)    There is no relative sliding between wire and capstan. The quality of finished wire is much better.

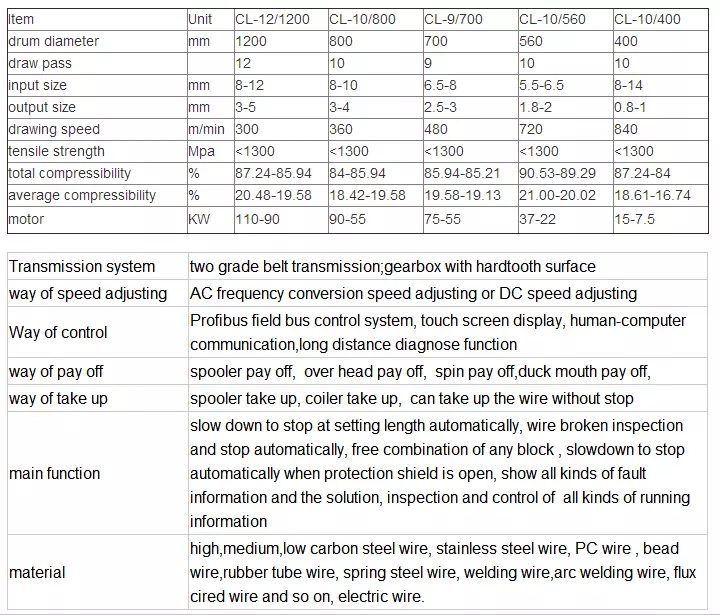

Technical Parameters：

Product Advantages：

1. high efficiency, higher speed

2. easy operation;

3. much better finish wire quality due to less deviations , no torsion drawing

4. high performance cooling system-water cooling plus high pressure wind cooling
